Product Details:
|
| Material: | 7u Foil / Polyethylene / 12x12 Mesh Glass Cloth | Product Name: | Alu Foil Fiberglass Cloth Tape |
|---|---|---|---|
| Adhesive: | Solvent Acrylic | Product Code: | AG725H |
| Backing Thickness: | 135mic | Total Thickness: | 185mic |
| Service Temperature: | -30 ~ + 120 Degree Centigrade | Flame Retardant: | Non Flame Retardant |
| Feature: | Heat-Resistant,Waterproof | Application: | HVAC Industry |
| High Light: | Solvent Aluminum Foil Tape,Self Adhesive Aluminum Foil Tape,OEM High Temp Aluminum Tape |
||

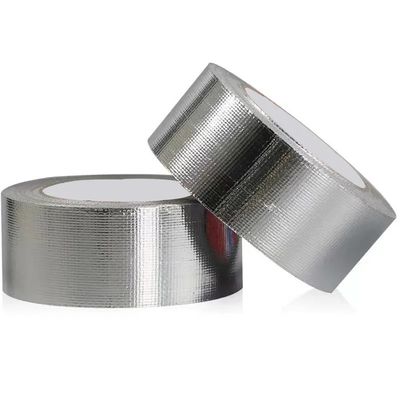

Aluminum Foil Fiberglass Cloth Tape - AG725H
Description:
Aluminum-Glass Cloth backing (7u Foil / Polyethylene / 12x12 Mesh Glass Cloth), combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.
The combination of high quality base material and the way of glass fiber weaving make the tape more wear-resistant and longer using time under the circumstance of high temperature resistance.
Standard Products:
| Product code | Aluminum Foil Fiberglass Cloth Tape - AG725H |
| Material | 7u Aluminium Foil + Polyethylene + 12x12 Mesh Fiberglass Cloth |
| Gule | High Performance Solvent Acrylic Adhesive |
| Cut Roll | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") |
| Log Roll | 1200mm x 45M / 50M |
| Jumbo Roll | 1200mm x 500M / 750M |
| Sample | Free, Freight on buyer |
Typical Physical Properties:
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 135 Micron | 5.4 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 185 Micron | 7.4 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 18 N/25mm | 64.8 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 15 cm | 6.0 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 265 N/25mm | 60.0 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | 5.0%. | 5.0% | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ~ +120 °C | -22 ~ +248 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
Features:
• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable
• Vapor barrier and moistureproof.
• High temperature resistance
• Wear-resistant and longer using time
Applications:
HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
Packaging & Shipping
Surface Preparation
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
Product Use
It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
